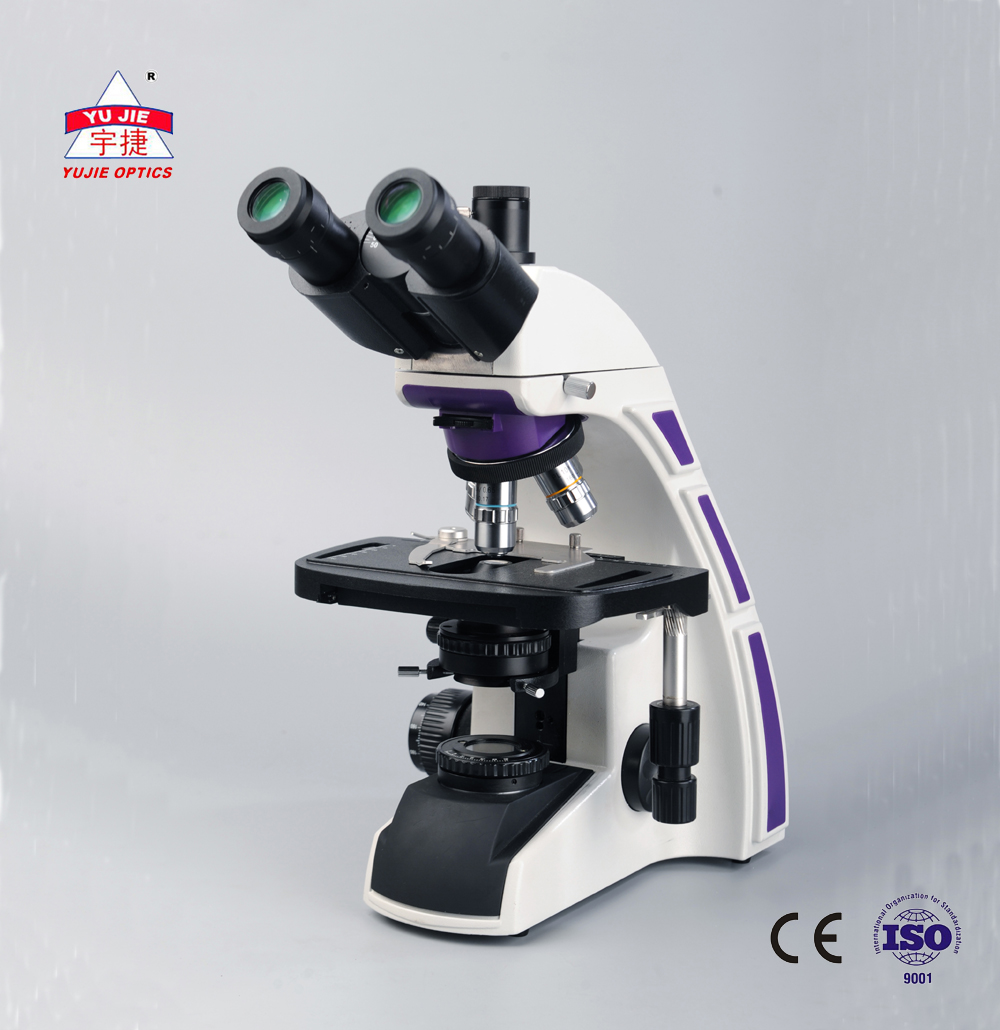

Production Description
 |  |
 |
| Optical System | Finity optical system |
| Eyepiece | PL10X/23mm high eyepiont eyepiece, diopter adjustment ±5, tubeΦ30mm |
| Objective | 45mm DIN achromatic objective：4X,10X,40X(S),100X(S,Oil) |
| Viewing Head | Articulated free triinocular head, 30°inclined, interpupillary distance 50-75mm |
| Nosepiece | Backward quintuple or quadruple objective nosepiece |
| Stage | 220X148mm X-axis low hand position double mechanical stage(steel wire transmission)，76X50mm,presion 0.1mm，damped double slide clamp |
| Condenser | Abbe condenser set |
| Focusing System | Coaxial coarse and fine focus knobs, precision 0.002mm |
| Illumination | 3W LED lamp with Kohler illumination system |
| Optional | 1.8" color LCD display 2.Insert phase contrast apparatus 3.Dry darkfield condenser, Oil-darkfiled condenser 4.Polarizing Device 5.Plan objective set、Infinity plan achromatic objective set 6.Swing Abbe condenser 7.5W LED燈 |
| Net Weight | 7KG |
Package
1set/foam+carton
Carton Dimension：36X31X47cm
